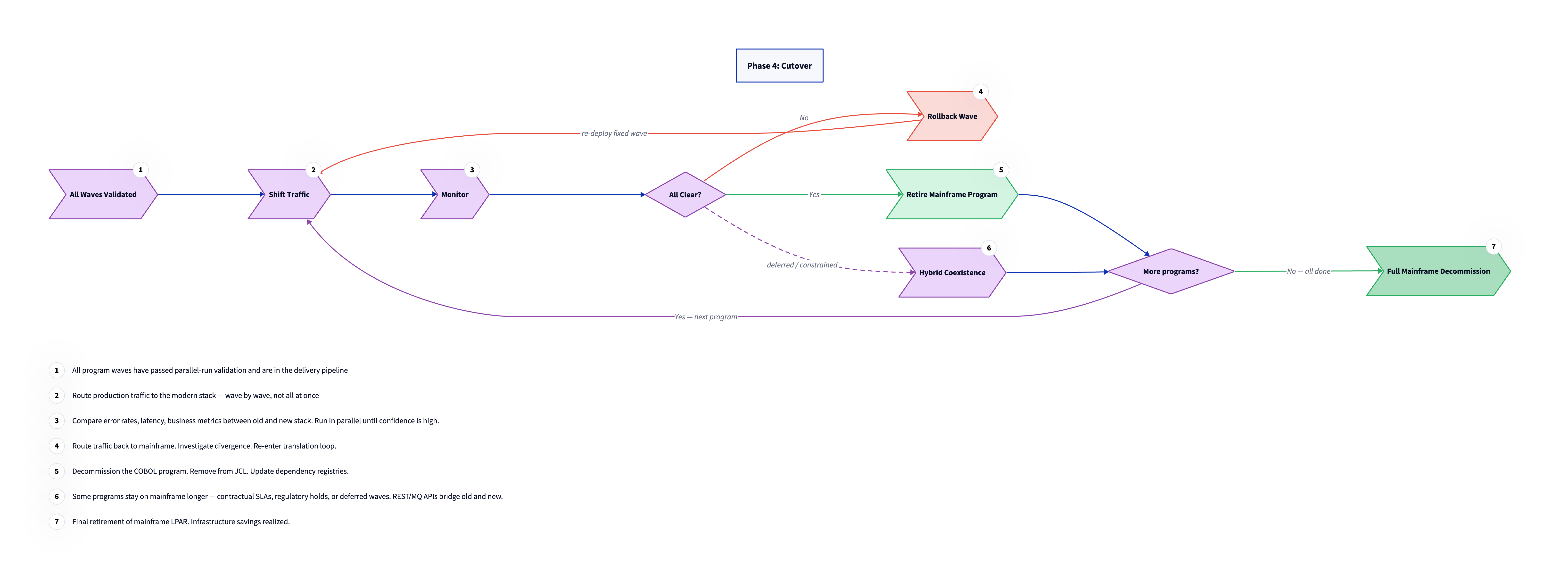

Phase 4: Cutover
Phase 4 is the transition from running parallel to running solo. Traffic shifts to the modern stack, the mainframe programs retire, and eventually the mainframe itself is decommissioned. This happens wave by wave, not all at once. The same discipline that governed Phase 3 governs Phase 4: each wave earns its independence before the next wave starts.
The pace of cutover is determined by confidence, not by schedule pressure. A wave that passes parallel validation and runs cleanly in production for its defined observation period moves to retirement. A wave that shows divergence or unexpected behavior rolls back and re-enters the translation loop. The mainframe is not a liability at this stage. It is the fallback that makes it safe to move fast on the modern side.
LPAR (Logical Partition). A hardware partition on an IBM mainframe that runs an independent instance of z/OS. Mainframe software licensing and hardware costs are typically billed per LPAR. Full mainframe decommission means shutting down the LPAR, at which point IBM licensing and hardware costs stop.
Shift traffic wave by wave
Cutover takes two distinct forms depending on whether the migrated program is API-backed or green screen. For API-replacement flows, cutover is an integration layer configuration change. The flow that currently routes requests to the mainframe backend is updated to route to the new service instead. This change is owned by the migration team as part of the wave deliverable. Consumer applications see no change. The mainframe program continues running as a fallback during a monitoring period, typically days to weeks per wave, and is retired once confidence is established. The client's integration team takes over operational ownership of the updated flow after the monitoring period closes.
For green screen terminal workflows, cutover is a user-facing transition. Users stop accessing the CICS terminal application and start using the replacement web application. This requires the web application to be fully accepted before the terminal sessions can be decommissioned. Training, a transition period with both systems available, and explicit sign-off from operational leads are all part of this track. This is where most schedule risk lives in a typical migration, because user adoption cannot be automated.
Monitor and respond
Monitoring during cutover watches for three categories of signal. Correctness checks ask whether the modern system's outputs still match the mainframe. Performance checks ask whether the modern system is handling production load within acceptable response time and resource bounds. Business impact checks ask whether downstream systems, reports, and SLA-governed processes are behaving as expected. Divergence in any of these categories triggers a rollback. Traffic routes back to the mainframe, the investigation begins, and the wave re-enters the translation loop. This is not a failure state. It is the safety mechanism working as designed. A rollback in Phase 4 means the estate is still intact, the business is unaffected, and the team has a specific signal to investigate rather than an unexplained production incident.
Retire mainframe programs
When confidence is high, typically after a wave has run in production for its defined observation period without divergence, the mainframe program is retired. It is removed from JCL scheduling, flagged as decommissioned in the dependency registry, and archived. The modern service takes full ownership of that function from that point forward. Retirement is a deliberate act with a specific record. The dependency registry is updated so that no future program analysis treats the retired program as an active dependency. The JCL change is documented. The archive preserves the original source for audit purposes but removes it from the active library. At this point, the wave is complete.
MuleSoft Anypoint. A common enterprise integration platform that mediates between mainframe systems and modern cloud applications. Mainframe services are exposed as REST APIs through the integration layer (MuleSoft, IBM API Connect, Apache Camel, or equivalent). Consumer applications only see the integration layer's API surface, which is why incremental migration is possible without changing those applications. After migration, the integration layer continues to manage data sync with SAP, OpenText, and other enterprise systems.
Handle deferred programs
Some programs may stay on the mainframe longer than planned due to contractual SLAs, regulatory holds, or late-breaking sequencing dependencies. For these, MuleSoft or an equivalent integration layer bridges the old and new systems via REST or MQ APIs, so that the modern stack can interact with the deferred mainframe programs without direct coupling. The goal is to minimize the number of deferred programs and to have a clear timeline for each one. Without a timeline, deferred programs become permanent residents, and the mainframe estate stabilizes at a reduced but still expensive size. Treating each deferral as a tracked obligation with a target retirement date keeps the estate shrinking predictably rather than accumulating a long tail of indefinitely deferred migrations.
Full decommission
Full mainframe decommission comes when every wave has cleared and no programs remain in active production on the mainframe. This is the infrastructure cost reduction event: the LPAR is shut down, the IBM software licensing stops, and the hardware contract ends. For a large estate, this milestone is typically measured in years from the start of Phase 1. The business case for migration usually does not require full decommission to show a return. Reducing the estate by 60 to 70 percent typically recovers the migration cost through reduced IBM licensing fees and reduced mainframe staffing costs before the final programs are retired. Full decommission is the clean ending, but the ROI inflection point arrives well before it.
